D6461 Datasheet - NEC

D6461 - CMOS LSI

Input pin for the data read clock.

The data input to the DATA pin is read at rising edges of the clock.

Serial transfer is accepted when this pin is low.

Input pin for control data.

Data is read in synchronization with the clock input to the CLK pin.

Pin used for the power-on clear function.

After p

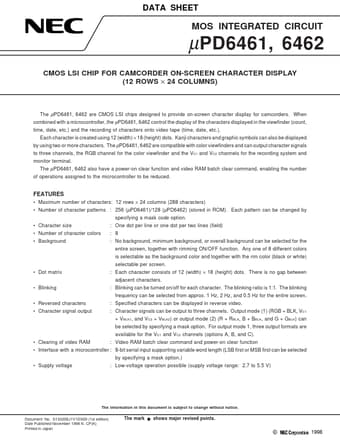

DATA SHEET MOS INTEGRATED CIRCUIT µPD6461, 6462 CMOS LSI CHIP FOR CAMCORDER ON-SCREEN CHARACTER DISPLAY (12 ROWS × 24 COLUMNS) The µPD6461, 6462 are CMOS LSI chips designed to provide on-screen character display for camcorders.

When combined with a microcontroller, the µPD6461, 6462 control the display of the characters displayed in the viewfinder (count, time, date, etc.) and the recording of characters onto video tape (time, date, etc.).

Each character is created using 12 (width) × 18 (height

D6461 Features

* Maximum number of characters: 12 rows × 24 columns (288 characters)

* Number of character patterns : 256 (µPD6461)/128 (µPD6462) (stored in ROM). Each pattern can be changed by specifying a mask code option.

* Character size : One dot per line or one dot per two lines

D6461_NEC.pdf

Preview of D6461 PDF
D6461 Datasheet Preview Page 2 D6461 Datasheet Preview Page 3

Datasheet Details

Part number:

D6461

Manufacturer:

NEC

File Size:

395.17 KB

Description:

Cmos lsi.
