D720112GK Datasheet - NEC

D720112GK - UPD720112

DATA SHEET MOS INTEGRATED CIRCUIT µPD720112 USB 2.0 HUB CONTROLLER The µPD720112 is a USB 2.0 hub device that complies with the Universal Serial Bus (USB) Specification Revision 2.0 and works up to 480 Mbps.

USB 2.0 compliant transceivers are integrated for upstream and all downstream ports.

The µPD720112 works backward compatible either when any one of the downstream ports is connected to a USB 1.1 compliant device, or when the upstream port is connected to a USB 1.1 compliant host.

Detailed

D720112GK Features

* Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)

* Certified by USB implementers forum and granted the USB 2.0 high-speed Logo

* High-speed or full-speed packet protocol sequencer for Endpoint 0/1

* 4 (Max.) downstream facin

D720112GK-NEC.pdf

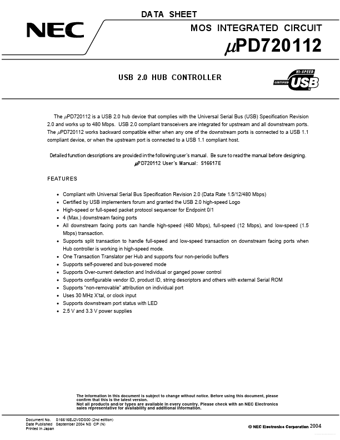

Preview of D720112GK PDF
D720112GK Datasheet Preview Page 2 D720112GK Datasheet Preview Page 3

Datasheet Details

Part number:

D720112GK

Manufacturer:

NEC

File Size:

411.66 KB

Description:

Upd720112.
