LD7246A Datasheet - NEC

HIGH POWER TRAVELING WAVE TUBE

LD7246A Features

* ™ Light weight, Compact and Efficient The tube has dual-depressed collectors and is designed to operate at high efficiency across wide power output range. It features state-of the art techniques to optimize size and efficiency. ™ High Power Gain The power gain is typically 53 dB at 123 W level. ™ Si

LD7246A General Description

NEC LD7246A is PPM-focused traveling wave tube designed for use as final amplifier in the earth-to-satellite communications transmitter. This is capable of delivering an output power of 130 W over the range of 13.75 to 14.5 GHz. It provides a high power gain of 53 dB at 123 W output power. Furthermo.

LD7246A Datasheet (44.39 KB)

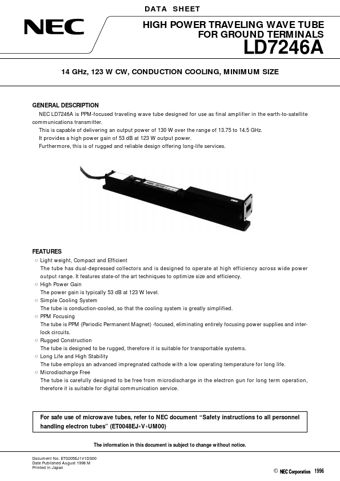

LD7246A Datasheet Preview — Preview of LD7246A PDF

Datasheet Details

Part number:

LD7246A

Manufacturer:

NEC

File Size:

44.39 KB

Description:

High power traveling wave tube.
