LD7249 Datasheet, Tube, NEC

LD7249 Features

• Tube ™ High Power Gain The power gain is typically 54 dB at the rated output power level. ™ Simple Cooling System The tube is conduction-cooled so that the cooling system is greatly simplifi

PDF File Details

Part number:

LD7249

Manufacturer:

NEC

File Size:

73.11kb

Download:

📄 Datasheet

Description:

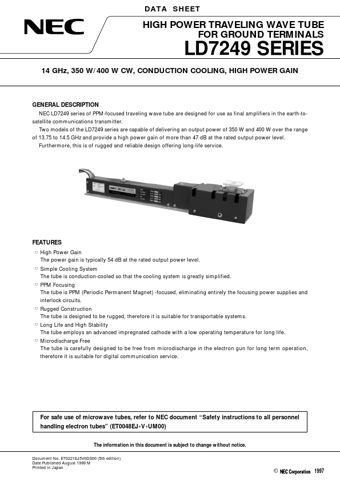

High power traveling wave tube. NEC LD7249 series of PPM-focused traveling wave tube are designed for use as final amplifiers in the earth-tosatellite communications
