NDL7401P - 1 310 nm InGaAsP STRAINED MQW DC-PBH LASER DIODE COAXIAL MODULE WITH SINGLE MODE FIBER

Datasheet Summary

Description

NDL7401P Series is 1 310 nm laser diode coaxial module with single mode fiber.

It has a strained Multiple Quantum Well (st-MQW) structure and a built-in InGaAs monitor photo diode.

It is recommended for junction and access network systems.

Features

  • Center wavelength.
  • High output power from fiber.
  • Low threshold current.
  • High cut-off frequency.
  • InGaAs monitor PIN-PD.
  • Wide operating temperature range.
  • Based on Bellcore TA-NWT-000983 T C =.
  • 40 to +85 °C λC = 1 310 nm Pf = 2.0 mW MIN. lth = 10 mA TYP. @TC = 25 °C f C = 2.0 GHz.

📥 Download Datasheet

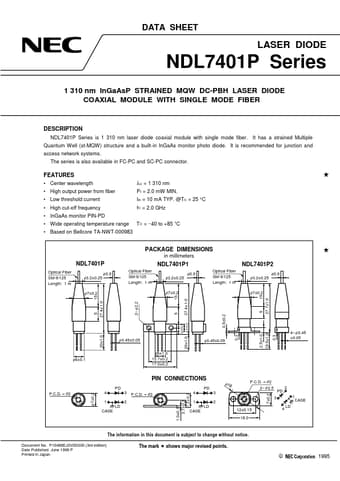

Datasheet preview – NDL7401P
