NDL7512P - InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 310 nm OTDR APPLICATION

Product Overview

NEC

NDL7512P InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 310 nm OTDR APPLICATION by NEC - Datasheet Preview — Datasheet preview – NDL7512P

Datasheet Details

Part number	NDL7512P
Manufacturer	NEC
File Size	60.62 KB
Description	InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 310 nm OTDR APPLICATION
Datasheet	NDL7512P Datasheet

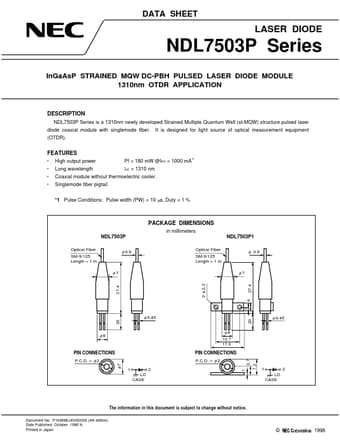

Additional preview pages of the NDL7512P datasheet.

Product details

Description

NDL7503P Series is a 1310nm newly developed Strained Multiple Quantum Well (st-MQW) structure pulsed laser diode coaxial module with singlemode fiber.

Features

x x x x High output power Long wavelength Singlemode fiber pigtail Pf = 180 mW @IFP = 1000 mA OC = 1310 nm.
1 Coaxial module without thermoelectric cooler.
1 Pulse Conditions: Pulse width (PW) = 10 Ps, Duty = 1 %.
