NDL7514P, InGaAsP STRAINED MQW DC-PBH PULSED LASER DIODE MODULE 1550nm OTDR APPLICATION

DATA SHEET LASER DIODE NDL7514P Series InGaAsP STRAINED MQW DC-PBH PULSED LASER DIODE MODULE 1310nm OTDR APPLICATION .
NDL7514P Series is a 1310nm newly developed Strained Multiple Quantum Well (st-MQW) structure pulsed laser diode coaxial module with singlemode fiber.

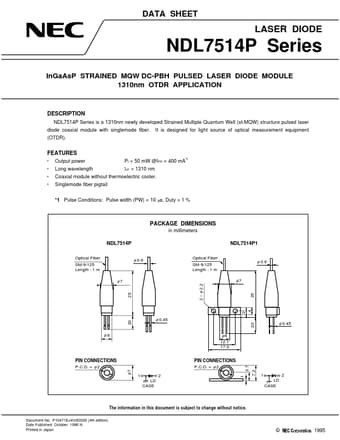

datasheet Preview Page 1 from Datasheet4u.com

NDL7514P_NEC.pdf

NDL7514P Datasheet Preview — Preview of NDL7514P PDF

Datasheet Details

Part number:

NDL7514P

Manufacturer:

NEC

File Size:

63.48 KB

Description:

InGaAsP STRAINED MQW DC-PBH PULSED LASER DIODE MODULE 1550nm OTDR APPLICATION

Features

* x x x x Output power Long wavelength Singlemode fiber pigtail Pf = 50 mW @IFP = 400 mA OC = 1310 nm
* 1 Coaxial module without thermoelectric cooler.
* 1 Pulse Conditions: Pulse width (PW) = 10 Ps, Duty = 1 % PACKAGE DIMENSIONS in millimeters NDL7514P Optical Fiber SM-9/125 Length : 1 m

Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
