NDL7515P, InGaAsP STRAINED MQW DC-PBH PULSED LASER DIODE MODULE 1310nm OTDR APPLICATION

DATA SHEET LASER DIODE NDL7515P Series InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 310 nm OTDR APPLICATION .
The NDL7515P Series is a 1 310 nm newly developed Multiple Quantum Well (MQW) structure pulsed laser diode module with single mode fiber.

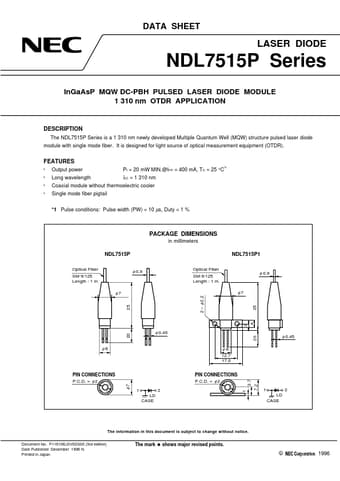

datasheet Preview Page 1 from Datasheet4u.com

NDL7515P_NEC.pdf

NDL7515P Datasheet Preview — Preview of NDL7515P PDF

Datasheet Details

Part number:

NDL7515P

Manufacturer:

NEC

File Size:

61.37 KB

Description:

InGaAsP STRAINED MQW DC-PBH PULSED LASER DIODE MODULE 1310nm OTDR APPLICATION

Features

* Output power Long wavelength Single mode fiber pigtail Pf = 20 mW MIN. @IFP = 400 mA, TC = 25 °C λC = 1 310 nm
* 1 Coaxial module without thermoelectric cooler
* 1 Pulse conditions: Pulse width (PW) = 10 µs, Duty = 1 % PACKAGE DIMENSIONS in millimet

Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
