NNCD6.2A ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES 400 mW TYPE

DATA SHEET E.S.D NOISE CLIPPING DIODES NNCD3.3A to NNCD12A ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES (400 mW TYPE) This product series is a diode developed for E.S.D (Electrostatic Discharge) noise protection. Based on the IEC1000-4-2 test on electromagnetic interference (EMI), the diode assures an endurance of no less than 30 kV. Type NNCD2.0A to NNCD12A Series is into DO-34 Package (Body length 2.4 mm MAX.) with DHD (Double Heatsink Diode) construction having allowable power dissipation.

NNCD6.2A Features

* Based on the electrostatic discharge immunity test (IEC1000-42), the product assures the minimum endurance of 30 kV.

* Based on the reference supply of the set, the product achieves a series over a wide range (15 product name lined up).

* DHD (Double Heatsink Diode) constru

NNCD6.2A_NEC.pdf

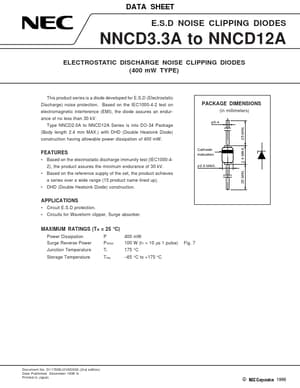

NNCD6.2A Datasheet Preview — Preview of NNCD6.2A PDF

Datasheet Details

Part number:

NNCD6.2A

Manufacturer:

NEC

File Size:

47.71 KB

Description:

Electrostatic discharge noise clipping diodes 400 mw type.
