NNCD6.2E ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES 200 mW TYPE

DATA SHEET E.S.D NOISE CLIPPING DIODES NNCD3.3E to NNCD12E ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES (200 mW TYPE) This product series is a diode developed for E.S.D (Electrostatic Discharge) noise protection. Based on the IEC1000-4-2 test on electromagnetic interference (EMI), the diode assures an endur- PACKAGE DIMENSIONS (in millimeters) 0.4 0.05 2.8 ± 0.2 1.5 0.65 0.15 +0.1 external interface circuit protection. Type NNCD3.3E to NNCD12E Series are into 3PIN Mini Mo.

NNCD6.2E Features

* 0.95 +0.1 1 1996 NNCD3.3E to NNCD12E ELECTRICAL CHARACTERISTICS (TA = 25 ˚C) Dynamic ImpedanceNote 2 Zz (Ω) MAX. 130 130 130 130 130 130 80 50 30 30 30 30 30 30 35 IT (mA) 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Breakdown VoltageNote 1 VBR (V) Type Number MIN. NNCD3.3E NNCD3.6E NNCD3.9E NNCD4.3E NNCD4.7

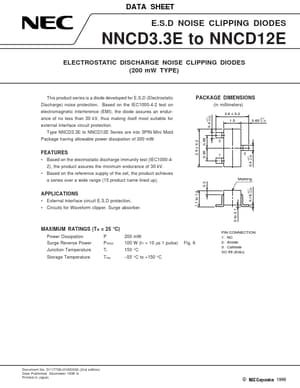

NNCD6.2E Datasheet (40.02 KB)

NNCD6.2E Datasheet Preview — Preview of NNCD6.2E PDF

Datasheet Details

Part number:

NNCD6.2E

Manufacturer:

NEC

File Size:

40.02 KB

Description:

Electrostatic discharge noise clipping diodes 200 mw type.
