NNCD6.2B ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES 500 mW TYPE

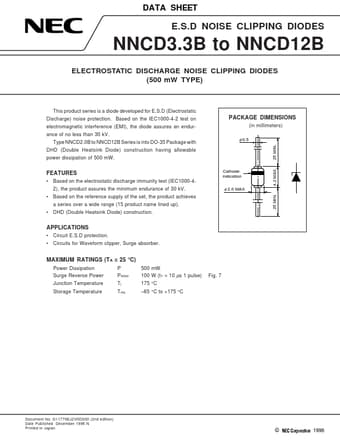

DATA SHEET E.S.D NOISE CLIPPING DIODES NNCD3.3B to NNCD12B ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES (500 mW TYPE) This product series is a diode developed for E.S.D (Electrostatic Discharge) noise protection. Based on the IEC1000-4-2 test on electromagnetic interference (EMI), the diode assures an endurance of no less than 30 kV. Type NNCD2.0B to NNCD12B Series is into DO-35 Package with DHD (Double Heatsink Diode) construction having allowable power dissipation of 500 mW. φ 0.5 25 MIN. .

NNCD6.2B Features

* Based on the electrostatic discharge immunity test (IEC1000-42), the product assures the minimum endurance of 30 kV.

* Based on the reference supply of the set, the product achieves a series over a wide range (15 product name lined up).

* DHD (Double Heatsink Diode) constru

NNCD6.2B_NEC.pdf

NNCD6.2B Datasheet Preview — Preview of NNCD6.2B PDF

Datasheet Details

Part number:

NNCD6.2B

Manufacturer:

NEC

File Size:

43.83 KB

Description:

Electrostatic discharge noise clipping diodes 500 mw type.
