UPC4570 - DUAL OPERATIONAL AMPLIFIER

UPC4570 Description

DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUIT µPC4570 ULTRA LOW-NOISE, WIDEBAND, DUAL OPERATIONAL AMPLIFIER .
The µPC4570 is an ultra low-noise, wideband high slew-rate, dual operational amplifier.

UPC4570 Features

* Ultra low noise : en = 4.5 nV/√Hz
* High slew rate : 7 V/µs
* High gain bandwidth product : GBW = 15 MHz at 100 kHz
* Internal frequency compensation ORDERING INFORMATION Part Number Package µPC4570C 8-pin plastic DIP (7.62 mm (300)) µPC4570G2 8-pin plastic S

📥 Download Datasheet

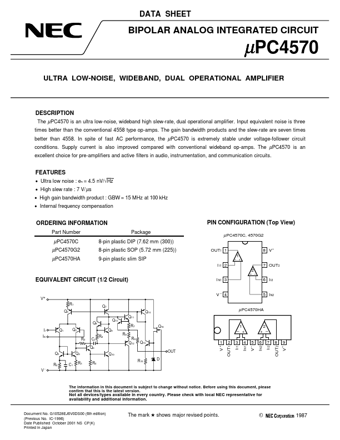

Preview of UPC4570 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPC4570
Manufacturer
NEC
File Size
76.53 KB
Datasheet
UPC4570_NEC.pdf
Description
DUAL OPERATIONAL AMPLIFIER
