uPC4570 Dual Operational Amplifier

Renesas

Description

μPC4570 Ultra Low-Noise, High Speed, Wide Band, Dual Operational Amplifier Datasheet R03DS0135EJ0100 Rev.1.00 2019.1.17 .
μPC4570 is a high performance version of general-purpose low-noise operational amplifier μPC258, 4558.

📥 Download Datasheet

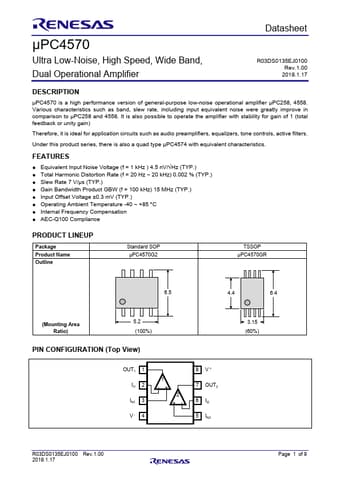

uPC4570 Datasheet Preview — Preview of uPC4570 PDF

Datasheet Specifications

Part number: uPC4570
Manufacturer: Renesas ↗
File Size: 592.11 KB
Datasheet: uPC4570-Renesas.pdf
Description: Dual Operational Amplifier

Features

* Equivalent Input Noise Voltage (f = 1 kHz ) 4.5 nV/Hz (TYP. )
* Total Harmonic Distortion Rate (f = 20 Hz ~ 20 kHz) 0.002 % (TYP. )
* Slew Rate 7 V/µs (TYP. )
* Gain Bandwidth Product GBW (f = 100 kHz) 15 MHz (TYP. )
* Input Offset Voltage ±0.3 mV (TYP. )
* Operating Ambient Te
