UPC4570G2

DUAL OPERATIONAL AMPLIFIER

UPC4570G2 Features

* Ultra low noise : en = 4.5 nV/√Hz

* High slew rate : 7 V/µs

* High gain bandwidth product : GBW = 15 MHz at 100 kHz

* Internal frequency compensation ORDERING INFORMATION Part Number Package µPC4570C 8-pin plastic DIP (7.62 mm (300)) µPC4570G2 8-pin plastic S

UPC4570G2 General Description

The µPC4570 is an ultra low-noise, wideband high slew-rate, dual operational amplifier. Input equivalent noise is three times better than the conventional 4558 type op-amps. The gain bandwidth products and the slew-rate are seven times better than 4558. In spite of fast AC performance, the µPC4570 i.

UPC4570G2 Datasheet (76.53 KB)

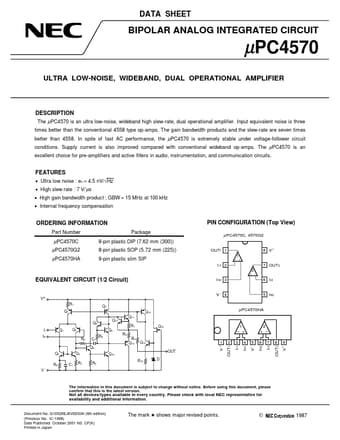

Preview of UPC4570G2 PDF

Datasheet Details

Part number:

UPC4570G2

Manufacturer:

NEC

File Size:

76.53 KB

Description:

Dual operational amplifier.
