UPC8103T - MIXER + OSCILLATOR IC FOR PAGER SYSTEM

UPC8103T Description

DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUITS µPC8103T, µPC8108T MIXER + OSCILLATOR IC FOR PAGER SYSTEM .
µPC8103T and µPC8108T are silicon monolithic integrated circuits designed as mixer-oscillator series for pager system.

UPC8103T Features

* 1 V supply voltage: VCC = 1.0 V to 2.0 V
* Low current consumption
* Wide band operation µPC8103T: lCC = 1.0 mA µPC8108T: lCC = 1.5 mA TYP. TYP. @ VCC = 1.0 V @ VCC = 1.0 V µPC8103T: fRF = 150 MHz to 330 MHz µPC8108T: fRF = 150 MHz to 930 MHz
* High-density sur

📥 Download Datasheet

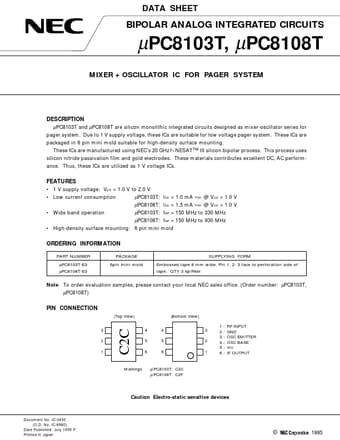

Preview of UPC8103T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPC8103T
Manufacturer
NEC
File Size
162.17 KB
Datasheet
UPC8103T_NEC.pdf
Description
MIXER + OSCILLATOR IC FOR PAGER SYSTEM
