UPD70F3003A

V853TM 32-/16-BIT SINGLE-CHIP MICROCONTROLLER

UPD70F3003A Features

* Compatible with µPD703003A, 703004A and 703025A

* Can be replaced with mask ROM model for mass production of application set µPD70F3003A → µPD703003A, 703004A µPD70F3025A → µPD703025A

* Internal memory Flash memory: 128K bytes (µPD70F3003A) 256K bytes (µPD70F3025A) Remark

UPD70F3003A General Description

The µPD70F3003A and µPD70F3025A have a flash memory instead of the internal mask ROM of the µPD703003A/ 703004A and µPD703025A, respectively. This model is useful for small-scale production of a variety of application sets or early start of production since the program can be written and erased by t.

UPD70F3003A Datasheet (295.31 KB)

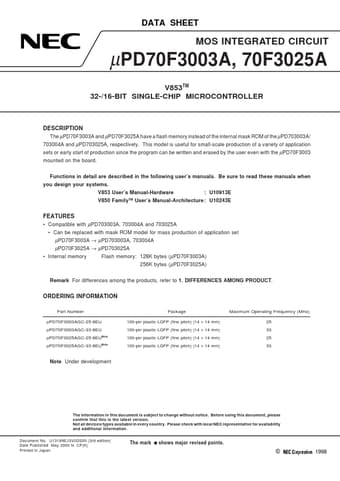

Preview of UPD70F3003A PDF

Datasheet Details

Part number:

UPD70F3003A

Manufacturer:

NEC

File Size:

295.31 KB

Description:

V853tm 32-/16-bit single-chip microcontroller.
