uPD70F3040, uPD70F3038 Datasheet - Renesas

uPD70F3040 32-BIT SINGLE-CHIP MICROCONTROLLER

The µPD70F3038, µPD70F3038Y, µPD70F3040, and µPD70F3040Y are products that substitute flash memory for the mask ROM of the µPD703038, µPD703038Y, µPD703039, 703040, and 703041, and µPD703039Y, 703040Y, and 703041Y, respectively. Since the µPD70F3038, µPD70F3038Y, µPD70F3040, and µPD70F3040Y can be r.

uPD70F3040 Features

* { Pin compatible with µPD703038, 703039, 703040, 703041, 703038Y, 703039Y, 703040Y, and 703041Y

* For mass production, these can be replaced by a mask ROM version. µPD70F3038→ µPD703038 µPD70F3038Y→ µPD703038Y µPD70F3040→ µPD703039, 703040, 703041 µPD70F3040Y→ µPD703039Y, 703040Y, 703041Y A

uPD70F3038-Renesas.pdf

This datasheet PDF includes multiple part numbers: uPD70F3040, uPD70F3038. Please refer to the document for exact specifications by model.

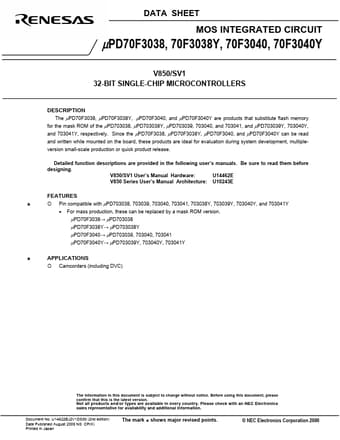

uPD70F3040 Datasheet Preview Page 2 uPD70F3040 Datasheet Preview Page 3

Datasheet Details

Part number:

uPD70F3040, uPD70F3038

Manufacturer:

Renesas ↗

File Size:

700.35 KB

Description:

32-bit single-chip microcontroller.

Note:

This datasheet PDF includes multiple part numbers: uPD70F3040, uPD70F3038.
Please refer to the document for exact specifications by model.
