UPD70F3040 - V850/SV1TM 32-/16-BIT SINGLE-CHIP MICROCONTROLLERS

NEC

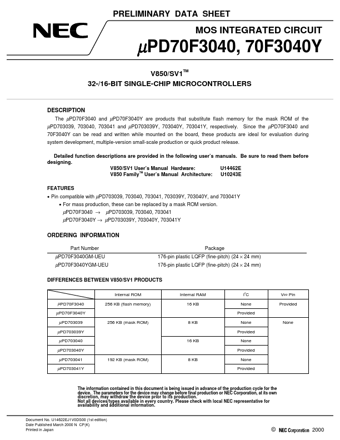

UPD70F3040 Datasheet Preview — Preview of UPD70F3040 PDF

Datasheet Details

Part number	UPD70F3040
Manufacturer	NEC
File Size	283.74 KB
Description	V850/SV1TM 32-/16-BIT SINGLE-CHIP MICROCONTROLLERS
Datasheet	UPD70F3040_NEC.pdf

UPD70F3040 Product details

Description

The µPD70F3040 and µPD70F3040Y are products that substitute flash memory for the mask ROM of the µPD703039, 703040, 703041 and µPD703039Y, 703040Y, 703041Y, respectively.Since the µPD70F3040 and 70F3040Y can be read and written while mounted on the board, these products are ideal for evaluation during system development, multiple-version small-scale production or quick product release.Detailed function descriptions are provided in the following user’s manuals.Be sure to read them before desi

Features

Pin compatible with µPD703039, 703040, 703041, 703039Y, 703040Y, and 703041Y.
For mass production, these can be replaced by a mask ROM version. µPD70F3040 → µPD703039, 703040, 703041 µPD70F3040Y → µPD703039Y, 703040Y, 703041Y.
