UPD70F3017A, UPD70F3015B Datasheet - NEC

UPD70F3017A 32-BIT SINGLE-CHIP MICROCONTROLLER

The µPD70F3015B, 70F3015BY, 70F3017A, and 70F3017AY are products with on-chip flash memory. Because the devices can be programmed by the user on-board, they are ideal for the evaluation stages of system development, small-scale production of a variety of products, and rapid development of new produc.

UPD70F3017A Features

* { Number of instructions: 74 { Minimum instruction execution time: 58.8 ns (@ 17 MHz operation with main system clock (fXX)) 50 ns (@ 20 MHz operation with main system clock (fXX)) 30.5 µs (@ 32.768 kHz operation with subsystem clock (fXT)) { General-purpose registers: 32 bits × 32 registers { Instr

UPD70F3015B_NEC.pdf

This datasheet PDF includes multiple part numbers: UPD70F3017A, UPD70F3015B. Please refer to the document for exact specifications by model.

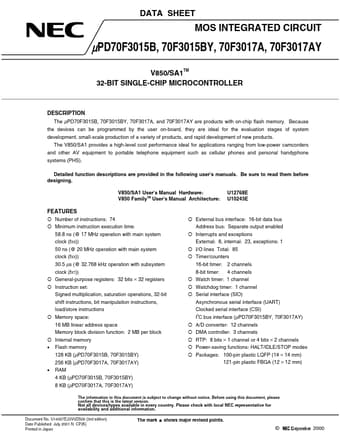

UPD70F3017A Datasheet Preview Page 2 UPD70F3017A Datasheet Preview Page 3

Datasheet Details

Part number:

UPD70F3017A, UPD70F3015B

Manufacturer:

NEC

File Size:

510.74 KB

Description:

32-bit single-chip microcontroller.

Note:

This datasheet PDF includes multiple part numbers: UPD70F3017A, UPD70F3015B.
Please refer to the document for exact specifications by model.
