UPD70F3017AY

32-BIT SINGLE-CHIP MICROCONTROLLER

UPD70F3017AY Features

* { Number of instructions: 74 { Minimum instruction execution time: 58.8 ns (@ 17 MHz operation with main system clock (fXX)) 50 ns (@ 20 MHz operation with main system clock (fXX)) 30.5 µs (@ 32.768 kHz operation with subsystem clock (fXT)) { General-purpose registers: 32 bits × 32 registers { Instr

UPD70F3017AY General Description

The µPD70F3015B, 70F3015BY, 70F3017A, and 70F3017AY are products with on-chip flash memory. Because the devices can be programmed by the user on-board, they are ideal for the evaluation stages of system development, small-scale production of a variety of products, and rapid development of new produc.

UPD70F3017AY Datasheet (510.74 KB)

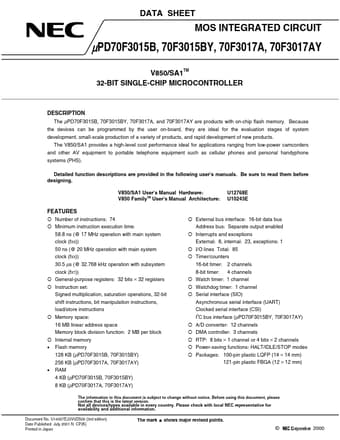

Preview of UPD70F3017AY PDF

Datasheet Details

Part number:

UPD70F3017AY

Manufacturer:

NEC

File Size:

510.74 KB

Description:

32-bit single-chip microcontroller.
