UPD70F3102-33 Datasheet - NEC

UPD70F3102-33 - 32-/16-BIT SINGLE-CHIP MICROCONTROLLER

PRELIMINARY DATA SHEET MOS INTEGRATED CIRCUITS µPD70F3102-33 V850E/MS1 32-/16-BIT SINGLE-CHIP MICROCONTROLLER TM The µPD70F3102-33 is a product that substitutes the internal mask ROM of the µPD703102-33 with flash memory.

This enables users to perform on-board program writing and erasure, enabling effective evaluation during system development, small-lot production of multiple devices, and rapid production start, and quick development and time-to-market.

A version using a 3.3 V power supply

UPD70F3102-33 Features

* µPD703102-33 compatible Can be replaced by the µPD703102-33 with internal mask ROM for mass production

* Internal flash memory: 128 KB ORDERING INFORMATION Part Number Package 144-pin plastic LQFP (fine pitch) (20 × 20) 144-pin plastic LQFP (fine pitch) (20 × 20) µPD70F3102GJ-33-

UPD70F3102-33_NEC.pdf

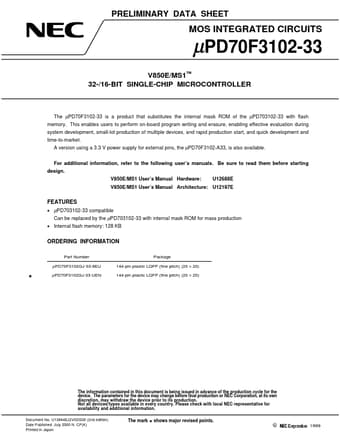

Preview of UPD70F3102-33 PDF
UPD70F3102-33 Datasheet Preview Page 2 UPD70F3102-33 Datasheet Preview Page 3

Datasheet Details

Part number:

UPD70F3102-33

Manufacturer:

NEC

File Size:

476.01 KB

Description:

32-/16-bit single-chip microcontroller.
