HA-121x - Crystal Clock Oscillators

Product Overview

NEL Frequency

📥 Download Datasheet

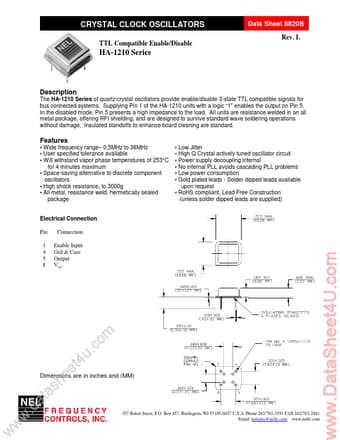

HA-121x Crystal Clock Oscillators by NEL Frequency - Datasheet Preview — Datasheet preview – HA-121x

Datasheet Details

Part number	HA-121x
Manufacturer	NEL Frequency
File Size	345.91 KB
Description	Crystal Clock Oscillators
Datasheet	HA-121x Datasheet
Note	This datasheet PDF includes multiple part numbers: HA-121x, HA-1211. Please refer to the document for exact specifications by model.
Additional preview pages of the HA-121x datasheet.

Product details

Description

The HA-1210 Series of quartz crystal oscillators provide enable/disable 3-state TTL compatible signals for bus connected systems.

Features

Wide frequency range.
0.5MHz to 36MHz.
User specified tolerance available.
Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
Space-saving alternative to discrete component oscillators.
High shock resistance, to 3000g.
All metal, resistance weld, hermetically sealed package.
Low Jitter.
High Q Crystal actively tuned oscillator circuit.
Power supply decoupling internal.
No inte.
