HA-1210 Datasheet - NEL

TTL Compatible Enable/Disable

HA-1210 Features

* Wide frequency range

* 0.5MHz to 36MHz

* User specified tolerance available

* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum

* Space-saving alternative to discrete component oscillators

* High shock resistance, to 3000g

HA-1210 General Description

The HA-1210 Series of quartz crystal oscillators provide enable/disable 3-state TTL compatible signals for bus connected systems. Supplying Pin 1 of the HA-1210 units with a logic “1" enables the output on Pin 5. In the disabled mode, Pin 5 presents a high impedance to the load. All units are resist.

HA-1210 Datasheet (324.04 KB)

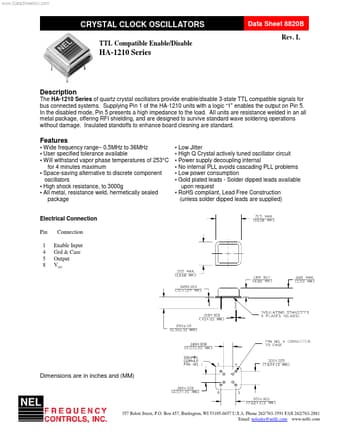

Preview of HA-1210 PDF

Datasheet Details

Part number:

HA-1210

Manufacturer:

NEL

File Size:

324.04 KB

Description:

Ttl compatible enable/disable.
