HA-A870 - PECL

Product Overview

NEL

📥 Download Datasheet

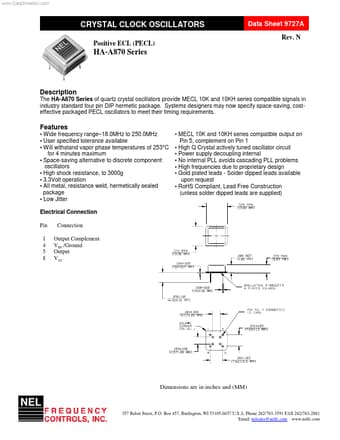

HA-A870 PECL by NEL - Datasheet Preview — Datasheet preview – HA-A870

Datasheet Details

Part number	HA-A870
Manufacturer	NEL
File Size	288.33 KB
Description	PECL
Datasheet	HA-A870 Datasheet
Additional preview pages of the HA-A870 datasheet.

Product details

Description

The HA-A870 Series of quartz crystal oscillators provide MECL 10K and 10KH series compatible signals in industry standard four pin DIP hermetic package.

Features

Wide frequency range.
18.0MHz to 250.0MHz.
User specified tolerance available.
Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
Space-saving alternative to discrete component oscillators.
High shock resistance, to 3000g.
3.3Volt operation.
All metal, resistance weld, hermetically sealed package.
Low Jitter Electrical Connection Pin 1 4 5 8 Connection Output Complement VEE /Ground Output VCC.
