HA-A137A-FREQ

CMOS Compatible Enable/Disable

HA-A137A-FREQ Features

* Wide frequency range

* 0.5MHz to 20.0MHz

* User specified tolerance available

* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum

* Space-saving alternative to discrete component oscillators

* High shock resistance, to 3000g

HA-A137A-FREQ General Description

The HA-A1370 Series of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals for bus connected systems. Supplying Pin 1 of the HA-A1370 units with a logic “0" enables the output on Pin 5. Alternately, supplying pin 1 of the HA-A1380 units with a logic “1" enables its Pin .

HA-A137A-FREQ Datasheet (389.47 KB)

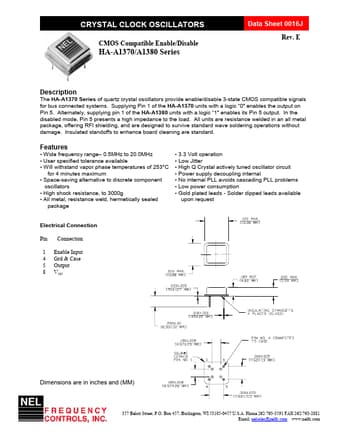

Preview of HA-A137A-FREQ PDF

Datasheet Details

Part number:

HA-A137A-FREQ

Manufacturer:

ETC

File Size:

389.47 KB

Description:

Cmos compatible enable/disable.
