HA-A1371-FREQ - CMOS Compatible Enable/Disable

Product Overview

📥 Download Datasheet

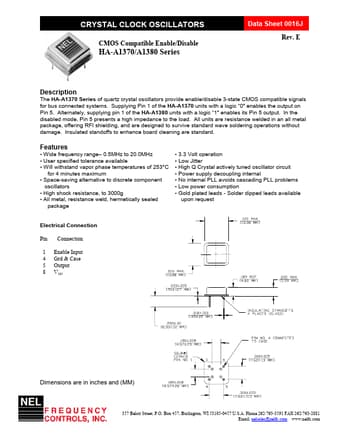

HA-A1371-FREQ CMOS Compatible Enable/Disable by ETC - Datasheet Preview — Datasheet preview – HA-A1371-FREQ

Datasheet Details

Part number	HA-A1371-FREQ
Manufacturer	ETC
File Size	389.47 KB
Description	CMOS Compatible Enable/Disable
Datasheet	HA-A1371-FREQ Datasheet
Note	This datasheet PDF includes multiple part numbers: HA-A1371-FREQ, HAA. Please refer to the document for exact specifications by model.
Additional preview pages of the HA-A1371-FREQ datasheet.

Product details

Description

The HA-A1370 Series of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals for bus connected systems.

Features

Wide frequency range.
0.5MHz to 20.0MHz.
User specified tolerance available.
Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
Space-saving alternative to discrete component oscillators.
High shock resistance, to 3000g.
All metal, resistance weld, hermetically sealed package Electrical Connection Pin 1 4 5 8 Connection Enable Input Grd & Case Output VDD.
3.3 Volt operation.
Low Jitter.
