S7B321835M, S7B323635M - 1Mx36 & 2Mx18 Flow-Trough SRAM

S7B321835M Description

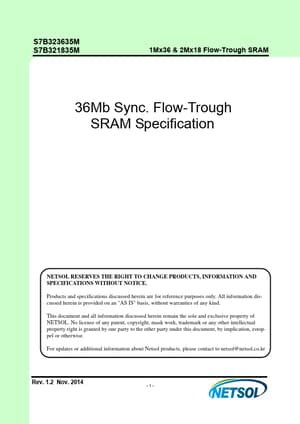

S7B323635M SS77BB332213863355MM S7B321835M 1Mx36 & 2Mx18 Flow-Trough SRAM 1Mx36 & 2Mx18 Flow-Trough SRAM 36Mb Sync.Flow-Trough SRAM Specification .
The S7B323635M and S7B321835M are 37,748,736-bit Synchronous Static Random Access Memory designed for high performance.

S7B321835M Features

* VDD = 1.8V (1.7V ~ 2.0V) or 2.5V (2.3V ~ 2.7V) or 3.3V (3.1V ~ 3.5V) Power Supply
* VDDQ = 1.7V ~ 2.0V I/O Power Supply (VDD=1.8V) or 2.3V ~ 2.7V I/O Power Supply (VDD=2.5V) or 2.3V ~ 3.5V I/O Power Supply (VDD=3.3V)
* Synchronous Operation
* Self-Timed Write Cycle

S7B321835M Applications

* GW, BW, LBO, ZZ. Write cycles are internally self-timed and synchronous. Full bus-width write is done by GW, and each byte write is performed by the combination of WEx and BW when GW is high. And with CS1 high, ADSP is blocked to control signals. Burst cycle can be initiated with either the address

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S7B321835M, S7B323635M. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S7B321835M, S7B323635M
Manufacturer
NETSOL
File Size
569.19 KB
Datasheet
S7B323635M-NETSOL.pdf
Description
1Mx36 & 2Mx18 Flow-Trough SRAM
Note
This datasheet PDF includes multiple part numbers: S7B321835M, S7B323635M.
Please refer to the document for exact specifications by model.
