S7B323635M, 1Mx36 & 2Mx18 Flow-Trough SRAM

S7B323635M SS77BB332213863355MM S7B321835M 1Mx36 & 2Mx18 Flow-Trough SRAM 1Mx36 & 2Mx18 Flow-Trough SRAM 36Mb Sync.Flow-Trough SRAM Specification .
The S7B323635M and S7B321835M are 37,748,736-bit Synchronous Static Random Access Memory designed for high performance.

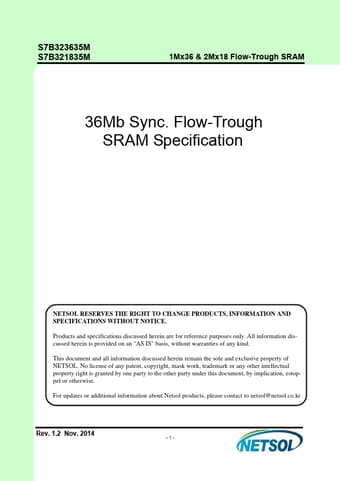

datasheet Preview Page 1 from Datasheet4u.com

S7B323635M-NETSOL.pdf

S7B323635M Datasheet Preview — Preview of S7B323635M PDF

Datasheet Details

Part number:

S7B323635M

Manufacturer:

NETSOL

File Size:

569.19 KB

Description:

1Mx36 & 2Mx18 Flow-Trough SRAM

Features

* VDD = 1.8V (1.7V ~ 2.0V) or 2.5V (2.3V ~ 2.7V) or 3.3V (3.1V ~ 3.5V) Power Supply
* VDDQ = 1.7V ~ 2.0V I/O Power Supply (VDD=1.8V) or 2.3V ~ 2.7V I/O Power Supply (VDD=2.5V) or 2.3V ~ 3.5V I/O Power Supply (VDD=3.3V)
* Synchronous Operation
* Self-Timed Write Cycle

Applications

* GW, BW, LBO, ZZ. Write cycles are internally self-timed and synchronous. Full bus-width write is done by GW, and each byte write is performed by the combination of WEx and BW when GW is high. And with CS1 high, ADSP is blocked to control signals. Burst cycle can be initiated with either the address
