S7K1618T2M

512Kx36 & 1Mx18 DDRII+ CIO BL2 SRAM

S7K1618T2M Features

* 1.8V+0.1V/-0.1V Power Supply.

* DLL circuitry for wide output data valid window and future freguency scaling.

* I/O Supply Voltage 1.5V+0.1V/-0.1V for 1.5V I/O, 1.8V+0.1V/ -0.1V for 1.8V I/O

* Pipelined, double-data rate operation.

* Common data input/output

S7K1618T2M General Description

The S7K1636T2M and S7K1618T2M are 18,874,368-bits DDR Common I/O Synchronous Pipelined Burst SRAMs. They are organized as 524,288 words by 36bits for S7K1636T2M and 1,048,576 words by 18 bits for S7K1618T2M . Address, data inputs, and all control signals are synchronized to the input clock ( K or K .

S7K1618T2M Datasheet (361.74 KB)

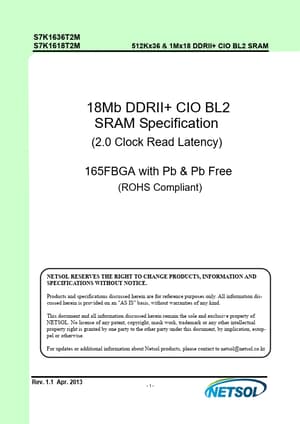

S7K1618T2M Datasheet Preview — Preview of S7K1618T2M PDF

Datasheet Details

Part number:

S7K1618T2M

Manufacturer:

NETSOL

File Size:

361.74 KB

Description:

512kx36 & 1mx18 ddrii+ cio bl2 sram.
SSSS7777KKKK1111666613318668TTTT2222MMMM 551122KKxx3366 && 11MMxx1188 DDDDRRIIII++ CCIIOO BBLL22 SSRRAAMM 18Mb DDRII+ CIO BL2 SRAM Specification (2..
