S7K1636T2M - 512Kx36 & 1Mx18 DDRII+ CIO BL2 SRAM

📥 Download Datasheet

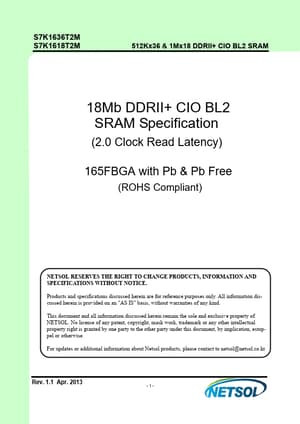

S7K1636T2M Datasheet Preview — Preview of S7K1636T2M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S7K1636T2M
Manufacturer	NETSOL
File Size	361.74 KB
Description	512Kx36 & 1Mx18 DDRII+ CIO BL2 SRAM
Datasheet	S7K1636T2M-NETSOL.pdf

S7K1636T2M Product details

Description

The S7K1636T2M and S7K1618T2M are 18,874,368-bits DDR Common I/O Synchronous Pipelined Burst SRAMs.

Features

1.8V+0.1V/-0.1V Power Supply.
DLL circuitry for wide output data valid window and future freguency scaling.
I/O Supply Voltage 1.5V+0.1V/-0.1V for 1.5V I/O, 1.8V+0.1V/ -0.1V for 1.8V I/O.
Pipelined, double-data rate operation.
Common data input/output bus.
HSTL I/O.
Full data coherency, providing most current data.
Synchronous pipeline read with self timed late write.
Read latency : 2 clock cycles.
