NFSW036DT Datasheet - NICHIA

NFSW036DT WHITE LED

Package Materials Encapsulating Resin Materials Electrodes Materials Ceramics （+） Silicone Resin (with diffuser and phosphor) Au-plated Weight 0.029g(TYP) K A Protection Device 4 SOLDERING NICHIA STS-DA1-1423A * Recommended Reflow Soldering Condition(Lead-fr.

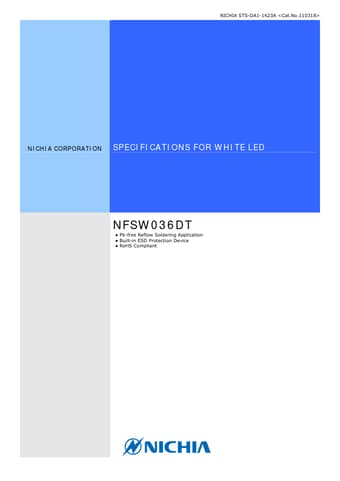

NICHIA STS-DA1-1423A NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NFSW036DT Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-1423A (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 350 Pulse Forward Current IFP 450 Allowable Reverse Current IR 85 Power Dissipation PD 1.225 Operating Temperature Topr -40~100 Storage Temperatur.
