NSSG100BT Datasheet - NICHIA

NSSG100BT - GREEN LED

Ceramics Silicone Resin Au-plated 0.019g(TYP) 4 SOLDERING NICHIA STS-DA1-1939 * Recommended Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 260°C Max 10sec Max * Recommended Hand Soldering Condition

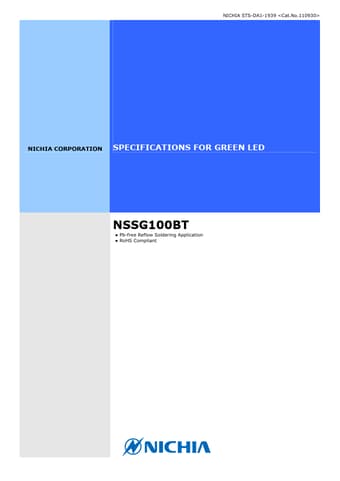

NICHIA STS-DA1-1939 NICHIA CORPORATION SPECIFICATIONS FOR GREEN LED NSSG100BT Pb-free Reflow Soldering Application RoHS Compliant SPECIFICATIONS (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 30 Pulse Forward Current IFP 100 Reverse Voltage VR 5 Power Dissipation PD 120 Operating Temperature Topr -30~85 Storage Temperature Tstg -40~100 Junction Temperature TJ 100 Absolute Maximum Ratings at TA=25°C.

NSSG100BT-NICHIA.pdf

Preview of NSSG100BT PDF
NSSG100BT Datasheet Preview Page 2 NSSG100BT Datasheet Preview Page 3

Datasheet Details

Part number:

NSSG100BT

Manufacturer:

NICHIA

File Size:

285.18 KB

Description:

Green led.
