NSD5604E Datasheet, Driver, NOVOSENSE

NSD5604E Features

  • Driver an additional 5V max 20mA LDO output for on board digital isolator or photo coupler power supply. Both NSD5604E & NSD5604NE are available in a compact 20pin, 6.5mm x 6.4mm HTSSOP20 pack

PDF File Details

Part number:

NSD5604E

Manufacturer:

NOVOSENSE

File Size:

698.47kb

Download:

📄 Datasheet

Description:

4-channel low side driver. 8 7.1. VM & VM UV / OV PROTECTION 8 7.2. VDD5_OUT ON NSD5604E 8 7.3. GND, SGND AND EXPOSED PAD 9 7.4. IN1, IN2, IN3, IN4 INPUT CON

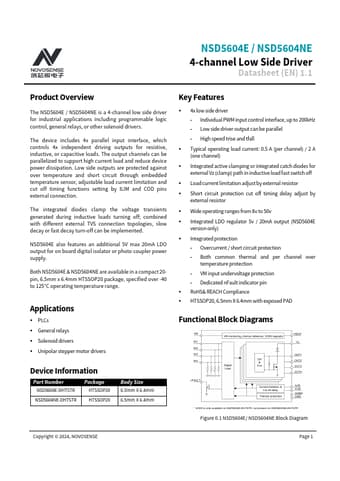

Datasheet Preview: NSD5604E 📥 Download PDF (698.47kb)
Page 2 of NSD5604E Page 3 of NSD5604E

NSD5604E Application

  • Applications including programmable logic control, general relays, or other solenoid drivers. The device includes 4x parallel input interface, which
