NSD5604N, NSD5604 4-channel Low Side Driver

NOVOSENSE

Description

NSD5604 / NSD5604N 4-channel Low Side Driver Datasheet (EN) 1.5 Product Overview The NSD5604 / NSD5604N is a 4-channel low side driver for industrial.
8 7.

📥 Download Datasheet

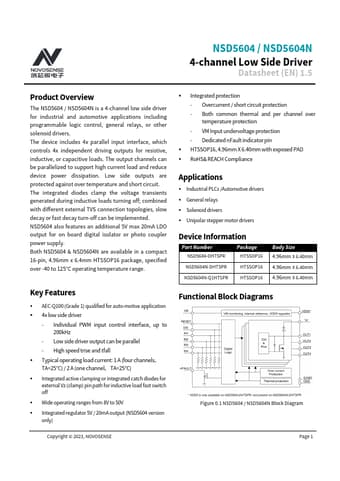

NSD5604N Datasheet Preview — This datasheet PDF includes multiple part numbers: NSD5604N, NSD5604. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NSD5604N, NSD5604
Manufacturer: NOVOSENSE
File Size: 591.18 KB
Datasheet: NSD5604-NOVOSENSE.pdf
Description: 4-channel Low Side Driver
Note: This datasheet PDF includes multiple part numbers: NSD5604N, NSD5604.
Please refer to the document for exact specifications by model.

Features

* an additional 5V max 20mA LDO output for on board digital isolator or photo coupler power supply. Both NSD5604 & NSD5604N are available in a compact 16-pin, 4.96mm x 6.4mm HTSSOP16 package, specified over -40 to 125°C operating temperature range. Key Features
* AEC-Q100 (Grade 1) qualified for a

Applications

* including programmable logic control, general relays, or other solenoid drivers. The device includes 4x parallel input interface, which controls 4x independent driving outputs for resistive, inductive, or capacitive loads. The output channels can be parallelized to support high current load and redu
