NTE821 - Integrated Circuit TV Chroma Demodulator

NTE Electronics

The NTE821 by NTE Electronics is a Integrated Circuit TV Chroma Demodulator. Below is the official datasheet preview.

📥 Download Datasheet

NTE821 Integrated Circuit TV Chroma Demodulator by NTE Electronics - Datasheet Preview — Official preview page of the **NTE821** Integrated Circuit TV Chroma Demodulator datasheet (NTE Electronics).

Datasheet Details

Part number	NTE821
Manufacturer	NTE Electronics
File Size	23.94 KB
Description	Integrated Circuit TV Chroma Demodulator
Datasheet	NTE821_NTEElectronics.pdf
Additional preview pages of the NTE821 datasheet.

NTE821 Product details

Description

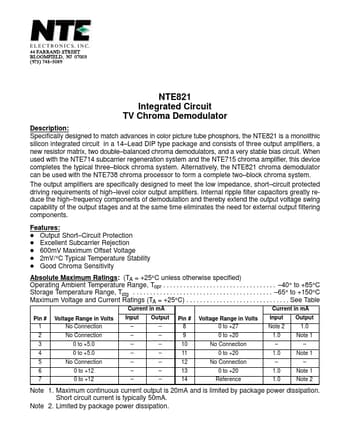

Specifically designed to match advances in color picture tube phosphors, the NTE821 is a monolithic silicon integrated circuit in a 14 Lead DIP type package and consists of three output amplifiers, a new resistor matrix, two double balanced chroma demodulators, and a very stable bias circuit. block chroma system.

Features

D Output Short.
Circuit Protection D Excellent Subcarrier Rejection D 600mV Maximum Offset Voltage D 2mV/°C Typical Temperature Stability D Good Chroma Sensitivity Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Operating Ambient Temperature Range, Topr.
.
40° to +85°C Storage Temperature Range, Tstg.
.
65° to +150°C Maxim.
