NTE0309MC - DC/DC Converters

This page provides the datasheet information for the NTE0309MC, a member of the NTE0303MC DC/DC Converters family.

Datasheet Summary

Features

  • RoHS compliant.
  • Lead frame technology.
  • Single isolated output.
  • 1kVDC isolation.
  • Efficiency up to 78%.
  • Power density 1.8W/cm3.
  • Wide temperature performance at full 1 Watt load,.
  • 40°C to 85°C.
  • UL 94V-0 Package material.
  • Footprint over pins 1.37cm2.
  • 3.3V, 5V & 12V inputs.
  • 3.3V, 5V, 9V, 12V & 15V outputs.
  • No heatsink required.
  • Internal SMD construction.
  • Toroidal magne.

📥 Download Datasheet

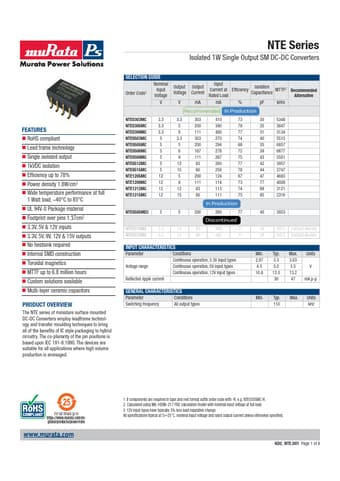

Datasheet preview – NTE0309MC

Datasheet Details

Part number NTE0309MC
Manufacturer Murata
File Size 217.61 KB
Description DC/DC Converters
Datasheet download datasheet NTE0309MC Datasheet
Additional preview pages of the NTE0309MC datasheet.

📁 Similar Datasheet

  • NTE-247 - Silicon Complementary Transistors Darlington Power Amplifier (NTE)
  • NTE10 - Silicon NPN Transistor UHF Low Noise Wide.Band Amplifier (NTE)
  • NTE100 - Germanium Complementary Transistors Oscillator (NTE)
  • NTE1002 - Integrated Circuit FM IF TV Amp (NTE)
  • NTE1003 - Integrated Circuit FM/AM IF Amplifier (NTE)
  • NTE1005 - Integrated Circuit FM Stereo Demodulator (NTE)
  • NTE1006 - Integrated Circuit FM Multiplex Stereo Demodulator (NTE)
  • NTE1009 - Integrated Circuit AF Power Amplifier (NTE)
  • NTE101 - Germanium Complementary Transistors (NTE)
  • NTE1012 - Integrated Circuit Module - Hybrid (NTE Electronics)
Other Datasheets by Murata

Full PDF Text Transcription

Click to expand full text
www.murata.com NTE Series Isolated 1W Single Output SM DC-DC Converters SELECTION GUIDE Order Code1 Nominal Input Voltage V Output Voltage V Output Current mA Input Current at Rated Load Efficiency Isolation Capacitance MTTF2 mA % pF kHrs Recommended Alternative FEATURES „RoHS compliant „Lead frame technology „Single isolated output „1kVDC isolation „Efficiency up to 78% „Power density 1.8W/cm3 „Wide temperature performance at full 1 Watt load, –40°C to 85°C „UL 94V-0 Package material „Footprint over pins 1.37cm2 „3.3V, 5V & 12V inputs „3.3V, 5V, 9V, 12V & 15V outputs „No heatsink required „Internal SMD construction „Toroidal magnetics „MTTF up to 6.
