NTE824 - Integrated Circuit Low Noise Dual Preamplifier

NTE Electronics

The NTE824 by NTE Electronics is a Integrated Circuit Low Noise Dual Preamplifier. Below is the official datasheet preview.

📥 Download Datasheet

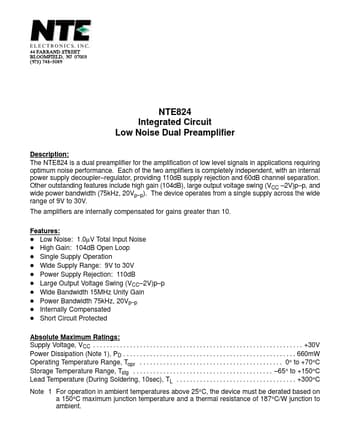

NTE824 Integrated Circuit Low Noise Dual Preamplifier by NTE Electronics - Datasheet Preview — Official preview page of the **NTE824** Integrated Circuit Low Noise Dual Preamplifier datasheet (NTE Electronics).

Datasheet Details

Part number	NTE824
Manufacturer	NTE Electronics
File Size	20.09 KB
Description	Integrated Circuit Low Noise Dual Preamplifier
Datasheet	NTE824_NTEElectronics.pdf
Additional preview pages of the NTE824 datasheet.

NTE824 Product details

Description

The NTE824 is a dual preamplifier for the amplification of low level signals in applications requiring optimum noise performance. regulator, providing 110dB supply rejection and 60dB channel separation.

Features

include high gain (104dB), large output voltage swing (VCC.
2V)p.
p, and wide power bandwidth (75kHz, 20Vp.
p). The device operates from a single supply across the wide range of 9V to 30V. The amplifiers are internally compensated for gains greater than 10. Features: D Low Noise: 1.0µV Total Input Noise D High Gain: 104dB Open Loop D Single Supply Operation D Wide Supply Range: 9V to 30V D Power Supply Rejection: 110dB D Large Output Voltage Swing (VCC.
2V)p.
