NTE1664 Datasheet - NTE

NTE1664 - Integrated Circuit TV Hotizontal/Vertical Sync Signal Processor

The NTE1664 is a silicon monolithic integrated circuit in a 22 *Lead DIP type package designed for use as a horizontal deflection circuit and vertical deflection circuit for color TV sets.

This device contains two synchronization signal separators, a vertical oscillator, vertical sawtooth sh

NTE1664 Features

* D Two Synchronous Signal Separators for Very Stable Synchronization (Horizontal and Vertical Signals are Independent of Each Other) D Remarkably Improved Interlace Tracking due to Separate Wiring of Horizontal and Vertical Sections D Wide Range of Vertical Retrace Blanking Time due to Adjust Pin D

NTE1664_NTEElectronics.pdf

Preview of NTE1664 PDF

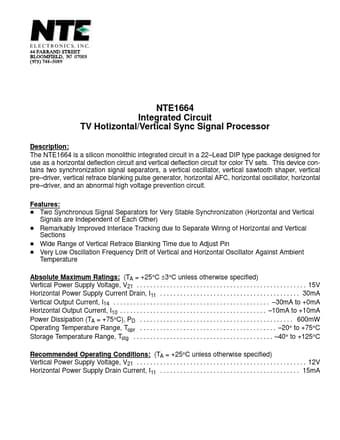

NTE1664 Datasheet Preview Page 2 NTE1664 Datasheet Preview Page 3

Datasheet Details

Part number:

NTE1664

Manufacturer:

NTE

File Size:

26.94 KB

Description:

Integrated circuit tv hotizontal/vertical sync signal processor.
