Part number:
NTE1667
Manufacturer:
NTE
File Size:
23.23 KB
Description:
Integrated circuit 2 channel amp / 2.3w/ch (4.7w btl).

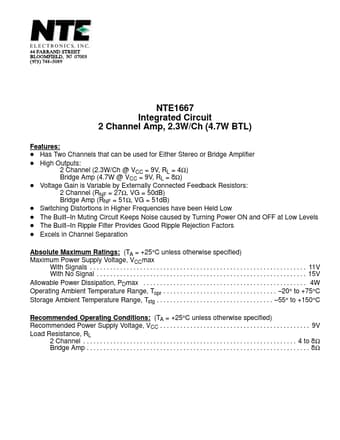

* D Has Two Channels that can be used for Either Stereo or Bridge Amplifier D High Outputs: 2 Channel (2.3W/Ch @ VCC = 9V, RL = 4Ω) Bridge Amp (4.7W @ VCC = 9V, RL = 8Ω) D Voltage Gain is Variable by Externally Connected Feedback Resistors: 2 Channel (RNF = 27Ω, VG = 50dB) Bridge Amp (RNF = 51Ω, VG =
NTE1667
NTE
23.23 KB
Integrated circuit 2 channel amp / 2.3w/ch (4.7w btl).
