NTE2515 Silicon Complementary Transistors

NTE2515 Description

NTE2515 (NPN) & NTE2516 (PNP) Silicon Complementary Transistors High Current Switch .

NTE2515 Features

* D Low Collector Emitter Saturation Voltage D High Gain

NTE2515 Applications

* D Display Drivers D High Speed Inverters D Converters Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector Base Voltage, VCBO
* 120V Collector Emitter Voltage, VCEO

📥 Download Datasheet

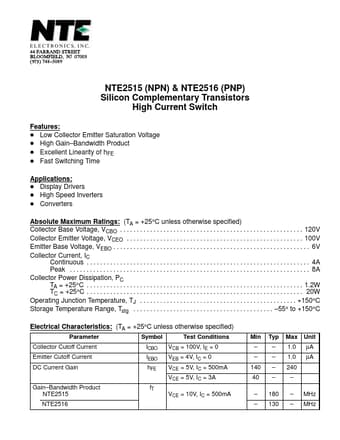

Preview of NTE2515 PDF
datasheet Preview Page 2

Datasheet Details

Part number
NTE2515
Manufacturer
NTE
File Size
22.79 KB
Datasheet
NTE2515_NTEElectronics.pdf
Description
Silicon Complementary Transistors
