Part number:
NTE2574
Manufacturer:
NTE
File Size:
22.06 KB
Description:
Silicon complementary transistors.

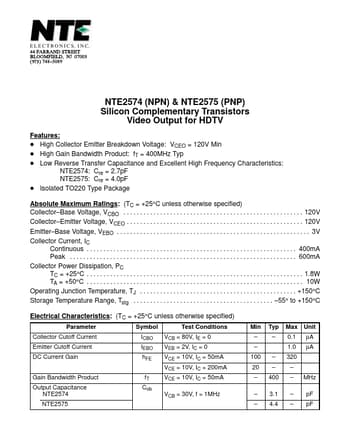

* D High Collector Emitter Breakdown Voltage: VCEO = 120V Min D High Gain Bandwidth Product: fT = 400MHz Typ D Low Reverse Transfer Capacitance and Excellent High Frequency Characteristics: NTE2574: Cre = 2.7pF NTE2575: Cre = 4.0pF D Isolated TO220 Type Package Absolute Maximum Ratings: (TC = +25°C u
NTE2574
NTE
22.06 KB
Silicon complementary transistors.
