NTE2598 - Silicon NPN Transistor

Features

  • D High Breakdown Voltage, Reliability D fast Switching Speed D Wide ASO Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector.
  • Base Voltage, VCBO.
  • . . . 1100V Collector.
  • Emitter Voltage, VCEO.
  • . . . 800V Emitter.
  • Base Voltage, VEBO.

📥 Download Datasheet

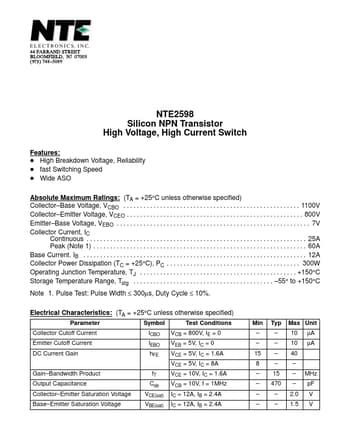

Datasheet preview – NTE2598

Datasheet Details

Part number NTE2598
Manufacturer NTE
File Size 24.68 KB
Description Silicon NPN Transistor
Datasheet download datasheet NTE2598 Datasheet
Additional preview pages of the NTE2598 datasheet.

📁 Similar Datasheet

  • NTE2000 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2001 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2003 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2004 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE214 - (NTE74xx) Transistor Logic (NTE Electronics)
  • NTE2393 - N-Channel MOSFET (INCHANGE)
  • NTE2661 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)
  • NTE2662 - Silicon NPN Transistor High Frequency (NTE Electronics)
  • NTE2665 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)
  • NTE2668 - Silicon NPN Transistor High Current Switching (NTE Electronics)
Other Datasheets by NTE
  • NTE2590 - Silicon NPN Transistor
  • NTE2591 - Silicon NPN Transistor
  • NTE2592 - Silicon NPN Transistor
  • NTE2593 - Silicon NPN Transistor
  • NTE2594 - Silicon NPN Transistor
  • NTE2596 - Silicon NPN Transistor
  • NTE2597 - Silicon NPN Transistor
  • NTE25 - Silicon Complementary Transistors

Full PDF Text Transcription

Click to expand full text
NTE2598 Silicon NPN Transistor High Voltage, High Current Switch Features: D High Breakdown Voltage, Reliability D fast Switching Speed D Wide ASO Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector–Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1100V Collector–Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V Emitter–Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V Collector Current, IC Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
