74AHC2G241, 74AHCT2G241 Datasheet - NXP Semiconductors

74AHCT2G241_NXPSemiconductors.pdf

This datasheet PDF includes multiple part numbers: 74AHC2G241, 74AHCT2G241. Please refer to the document for exact specifications by model.

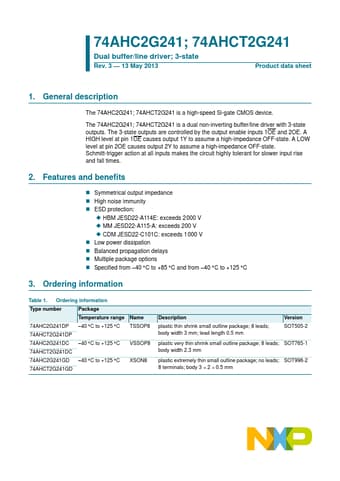

74AHC2G241 Datasheet Preview Page 2 74AHC2G241 Datasheet Preview Page 3

Datasheet Details

Part number:

74AHC2G241, 74AHCT2G241

Manufacturer:

NXP ↗ Semiconductors

File Size:

135.84 KB

Description:

Dual buffer/line driver.

Note:

This datasheet PDF includes multiple part numbers: 74AHC2G241, 74AHCT2G241.
Please refer to the document for exact specifications by model.

74AHC2G241, 74AHCT2G241, Dual buffer/line driver

The 74AHC2G241; 74AHCT2G241 is a high-speed Si-gate CMOS device.

The 74AHC2G241; 74AHCT2G241 is a dual non-inverting buffer/line driver with 3-state outputs.

The 3-state outputs are controlled by the output enable inputs 1OE and 2OE.

A HIGH level at pin 1OE causes output 1Y to assume a high-impedan

74AHC2G241 Features

* Symmetrical output impedance

* High noise immunity

* ESD protection:

* HBM JESD22-A114E: exceeds 2000 V

* MM JESD22-A115-A: exceeds 200 V

* CDM JESD22-C101C: exceeds 1000 V

* Low power dissipation

* Balanced propagation delays

* Multiple package options

* Sp
