74AHC2G00-Q100 Datasheet - NXP

74AHC2G00-Q100 Dual 2-input NAND gate

The 74AHC2G00-Q100; 74AHCT2G00-Q100 are high-speed Si-gate CMOS devices. They provide two 2-input NAND gates. The AHC device has CMOS input switching levels and supply voltage range 2 V to 5.5 V. The AHCT device has TTL input switching levels and supply voltage range 4.5 V to 5.5 V. This product has.

74AHC2G00-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from 40 C to +85 C and from 40 C to +125 C

* Symmetrical output impedance

* High noise immunity

* ESD protection:

* MIL-STD-883, method 3015 exceeds 2000 V

* HBM JESD22-A114F exceed

74AHC2G00-Q100-NXP.pdf

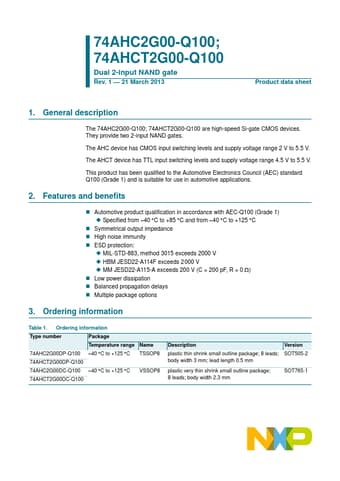

Preview of 74AHC2G00-Q100 PDF
