74AHC2G125-Q100 - Dual buffer/line driver

Product Overview

nexperia

📥 Download Datasheet

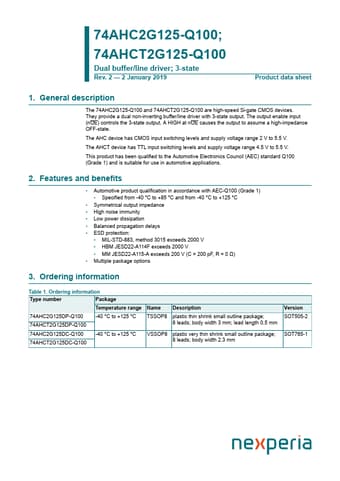

74AHC2G125-Q100 Dual buffer/line driver by nexperia - Datasheet Preview — Datasheet preview – 74AHC2G125-Q100

Datasheet Details

Part number	74AHC2G125-Q100
Manufacturer	nexperia
File Size	211.77 KB
Description	Dual buffer/line driver
Datasheet	74AHC2G125-Q100 Datasheet
Additional preview pages of the 74AHC2G125-Q100 datasheet.

Product details

Description

The 74AHC2G125-Q100 and 74AHCT2G125-Q100 are high-speed Si-gate CMOS devices.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Symmetrical output impedance.
High noise immunity.
Low power dissipation.
Balanced propagation delays.
ESD protection:.
MIL-STD-883, method 3015 exceeds 2000 V.
HBM JESD22-A114F exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω).
Multiple package opt.
