CGD1042H

23 dB gain high output power doubler

NXP Semiconductors

CGD1042H Features

* I I I I I I I High output power capability Excellent linearity Extremely low noise Excellent return loss properties Rugged construction Unconditionally stable Thermal optimized design 1.3 Applications I CATV systems operating in the 40 MHz to 1000 MHz frequency range 1.4 Quick reference data Table

CGD1042H General Description

Hybrid ampliﬁer module in a SOT115J package, operating at a supply voltage of 24 V Direct Current (DC), employing Hetero junction Field Effect Transistor (HFET) GaAs dies. CAUTION www.DataSheet4U.com This device is sensitive to ElectroStatic Discharge (ESD). Therefore care should be taken during t.

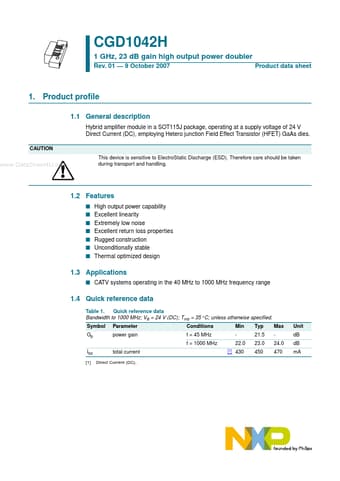

CGD1042H Datasheet (81.58 KB)

CGD1042H Datasheet Preview — Preview of CGD1042H PDF

Datasheet Details

Part number:

CGD1042H

Manufacturer:

NXP ↗ Semiconductors

File Size:

81.58 KB

Description:

23 db gain high output power doubler.
