CGD1200HB2P-BM3 Datasheet, Driver, Wolfspeed

CGD1200HB2P-BM3 Features

• Driver
• Optimized for use with Wolfspeed’s High-Performance BM3 Half Bridge Power Modules
• High-Frequency, Ultra-Fast Switching Operation
• On-Board 2 W Isolated Powe

PDF File Details

Part number:

CGD1200HB2P-BM3

Manufacturer:

Wolfspeed

File Size:

2.18MB

Download:

📄 Datasheet

Description:

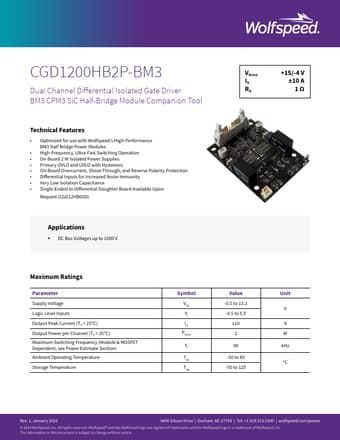

Dual channel differential isolated gate driver. Power supply input pin (+12 V Nominal Input) Common Positive line of 5 V differential high-side PWM signal pair. Terminated Into 120

CGD1200HB2P-BM3 Application

• Applications
• DC Bus Voltages up to 1000 V VDrive IG RG +15/-4 V ±10 A 1Ω Maximum Ratings Parameter Supply Voltage Logic Level Inputs Ou
