CGD1044HI, 25 dB gain GaAs high output power doubler

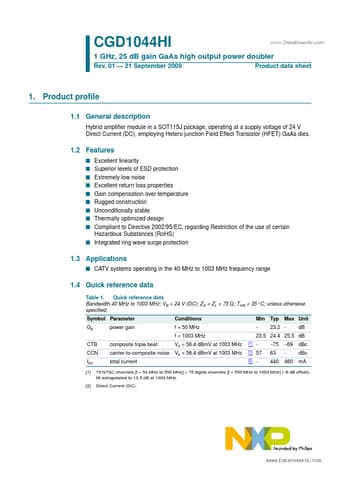

CGD1044HI Rev.01 * 21 September 2009 www.DataSheet4U.com 1 GHz, 25 dB gain GaAs high output power doubler Product data sheet 1.Product pr.
Hybrid ampliﬁer module in a SOT115J package, operating at a supply voltage of 24 V Direct Current (DC), employing Hetero junction Field Effect Transis.

datasheet Preview Page 1 from Datasheet4u.com

CGD1044HI_NXPSemiconductors.pdf

CGD1044HI Datasheet Preview — Preview of CGD1044HI PDF

Datasheet Details

Part number:

CGD1044HI

Manufacturer:

NXP ↗ Semiconductors

File Size:

76.30 KB

Description:

25 dB gain GaAs high output power doubler

Features

* I I I I I I I I I Excellent linearity Superior levels of ESD protection Extremely low noise Excellent return loss properties Gain compensation over temperature Rugged construction Unconditionally stable Thermally optimized design Compliant to Directive 2002/95/EC, regarding Restriction of the use of

Applications

* I CATV systems operating in the 40 MHz to 1003 MHz frequency range 1.4 Quick reference data Table 1. Quick reference data Bandwidth 40 MHz to 1003 MHz; VB = 24 V (DC); ZS = ZL = 75 Ω; Tmb = 35 °C; unless otherwise speciﬁed. Symbol Parameter Gp CTB CCN Itot [1] [2] Conditions f = 50 MHz f = 1003 MH
