IP4337CX18LF, IP4337CX18 Datasheet - NXP Semiconductors

IP4337CX18LF 7-channel integrated filter network

The IP4337CX18/LF is a 7-channel RC low-pass filter array which is designed to provide filtering of undesired RF signals in the 800 MHz to 3000 MHz frequency band. In addition, the IP4337CX18/LF incorporates diodes to provide protection to downstream components from ElectroStatic Discharge (ESD) volta.

IP4337CX18LF Features

* make the IP4337CX18/LF ideal for use in applications requiring the utmost in miniaturization. 1.2 Features I I I I Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant) Integrated 7-channel π-type RC filter network 70 Ω series resistance; 25 pF (typical) capacitance per lin

IP4337CX18_NXPSemiconductors.pdf

This datasheet PDF includes multiple part numbers: IP4337CX18LF, IP4337CX18. Please refer to the document for exact specifications by model.

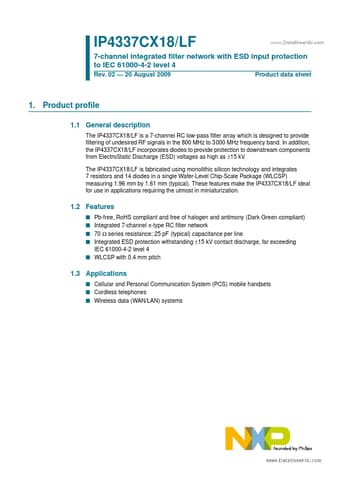

IP4337CX18LF Datasheet Preview Page 2 IP4337CX18LF Datasheet Preview Page 3

Datasheet Details

Part number:

IP4337CX18LF, IP4337CX18

Manufacturer:

NXP ↗ Semiconductors

File Size:

99.98 KB

Description:

7-channel integrated filter network.

Note:

This datasheet PDF includes multiple part numbers: IP4337CX18LF, IP4337CX18.
Please refer to the document for exact specifications by model.
