IP4338CX24LF, IP4338CX24 Datasheet - NXP Semiconductors

IP4338CX24LF 10-channel integrated filter network

The IP4338CX24/LF is a 10-channel RC low-pass filter array which is designed to provide filtering of undesired RF signals in the 800 MHz to 3000 MHz frequency band. In addition, the IP4338CX24/LF incorporates diodes to provide protection to downstream components from ElectroStatic Discharge (ESD) volt.

IP4338CX24LF Features

* make the IP4338CX24/LF ideal for use in applications requiring the utmost in miniaturization. 1.2 Features I I I I Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant) Integrated 10-channel π-type RC filter network 70 Ω series resistance; 25 pF (typical) capacitance per li

IP4338CX24_NXPSemiconductors.pdf

This datasheet PDF includes multiple part numbers: IP4338CX24LF, IP4338CX24. Please refer to the document for exact specifications by model.

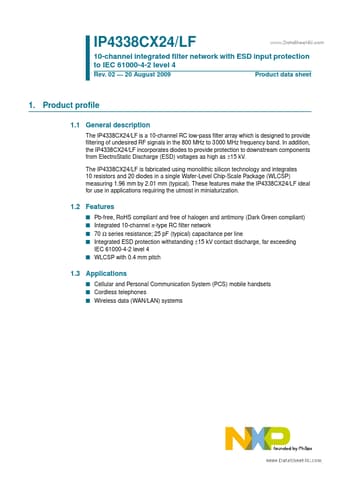

IP4338CX24LF Datasheet Preview Page 2 IP4338CX24LF Datasheet Preview Page 3

Datasheet Details

Part number:

IP4338CX24LF, IP4338CX24

Manufacturer:

NXP ↗ Semiconductors

File Size:

111.59 KB

Description:

10-channel integrated filter network.

Note:

This datasheet PDF includes multiple part numbers: IP4338CX24LF, IP4338CX24.
Please refer to the document for exact specifications by model.
